Wireless Tour Guide System

Our exclusive Wireless Tour Guide System is the ideal solution for simultaneous interpretation that requires delegates to move around or the conference break-up session where the crowds may be divided into small groups. This wireless tour guide system is UHF frequencies based and coming with noise cancellation technology that is able to avoid any interfering noise. The whole system operates well in a range of 700ft (200m) distance, even with walls.

Specifications of our wireless tour guide system:

  • Wireless transmission
  • User-friendly
  • Lightweight, handy & Portable
  • Long-lasting & rechargeable battery
  • Clear and wide reception range

Regardless to the size of the event, Elite provides on-site stand by technician for the duration of the event- making it absolutely worry-free for our clients.

The wireless tour guide system is suitable for:

  • Factory visits
  • Press Conferences
  • Break-up sessions
  • Focus group discussions
  • Tours
  • And etc

How the System Works
1. The wireless tour guide system is most suitable for small group of audience of 20 pax and below within a crowd. The setup is simple as it just needs to tap the sound feed from the main AV system (normal setup time is about 1 hour, including the testing).
2. The Speaker’s voice (also called the floor language) will transmit from the stationary wireless transmitter to the receivers of interpreters.
3. The interpreters will then use the portable wireless transmitter to interpret for the respective language audience, by selecting different channel at different frequency (again, up to a maximum of 32 channels).

Best Options under Different Situations
1. In single language interpretation, 1 stationary wireless transmitter plus 2 portable wireless transmitters plus 2 receivers or 3 portable wireless transmitters plus 2 receivers are needed, and the number of receivers needed shall base on the number of audience.
2. On the speaker side, it is advisable to use stationary wireless transmitter which cater for multiple languages (up to a maximum of 32 languages) so the speaker doesn’t need to use any handheld transmitter (wireless portable transmitter).
3. On the interpreter side, it is advisable to provide soundproof booth to avoid sound interference from the speaker or the environment, and maximise the listening experience of the delegates. This is especially necessary if the audience group requires interpreting service is more than 10 people.
4. Under the scenario of breakout sessions or the group has to move from one location to another location, stationary wireless transmitter will not be the best option (the speaker should then use the portable wireless transmitter to provide sound feed to interpreters.

Need to rent or purchase a portable system? Click on “Ask For A Quote!”

Portable Wireless Interpreting System Gallery

Portable Wireless Transmitter

Portable Wireless Transmitter (without battery)

  • Carrier Frequency: 819 Mhz-820 MHz
  • Power requirements: 1 x 1.2V 2500A Ni-MH batteries
  • Channels: 80 channels
  • Operating range: 100m
  • Dimensions (D X W x H): 24x40x97 (mm)
  • Weight: 70g
  • Battery life: 6 hours typical (on low range mode)
Portable Wireless Receiver

Portable Wireless Receiver

  • Carrier Frequency: 819 Mhz-820 MHz
  • Power requirements: 1 x 1.2V 2500A Ni-MH batteries
  • Channels: 80 channels
  • Operating range: 100m
  • Dimensions (D X W x H): 24x40x97 (mm)
  • Weight: 70g
  • Battery life: 6 hours typical (on low range mode)
Headset microphone

Headset microphone



Tie clip Microphone

Tie clip Microphone

  • Microphone for transmitter
  • Uni-directional -48±2dB
  • 3.5mm plug

2 Types of Headphone

  • Headsets

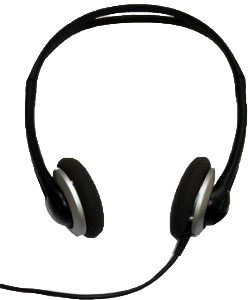

    Headset

    Headset

  • Side Earphone

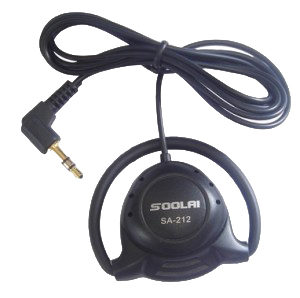

    Side Earphone

    Side Earphone

3.5mm plug φ30mm

Portable Charging Storage Case

Portable Charging Storage Case ((25 slots)

  • Hardcase
  • Charging 25 units at same time
  • 25 storing slots
  • Intelligent charging
  • Charging current: 200mA; (Include 5V/3A Power adapter)
